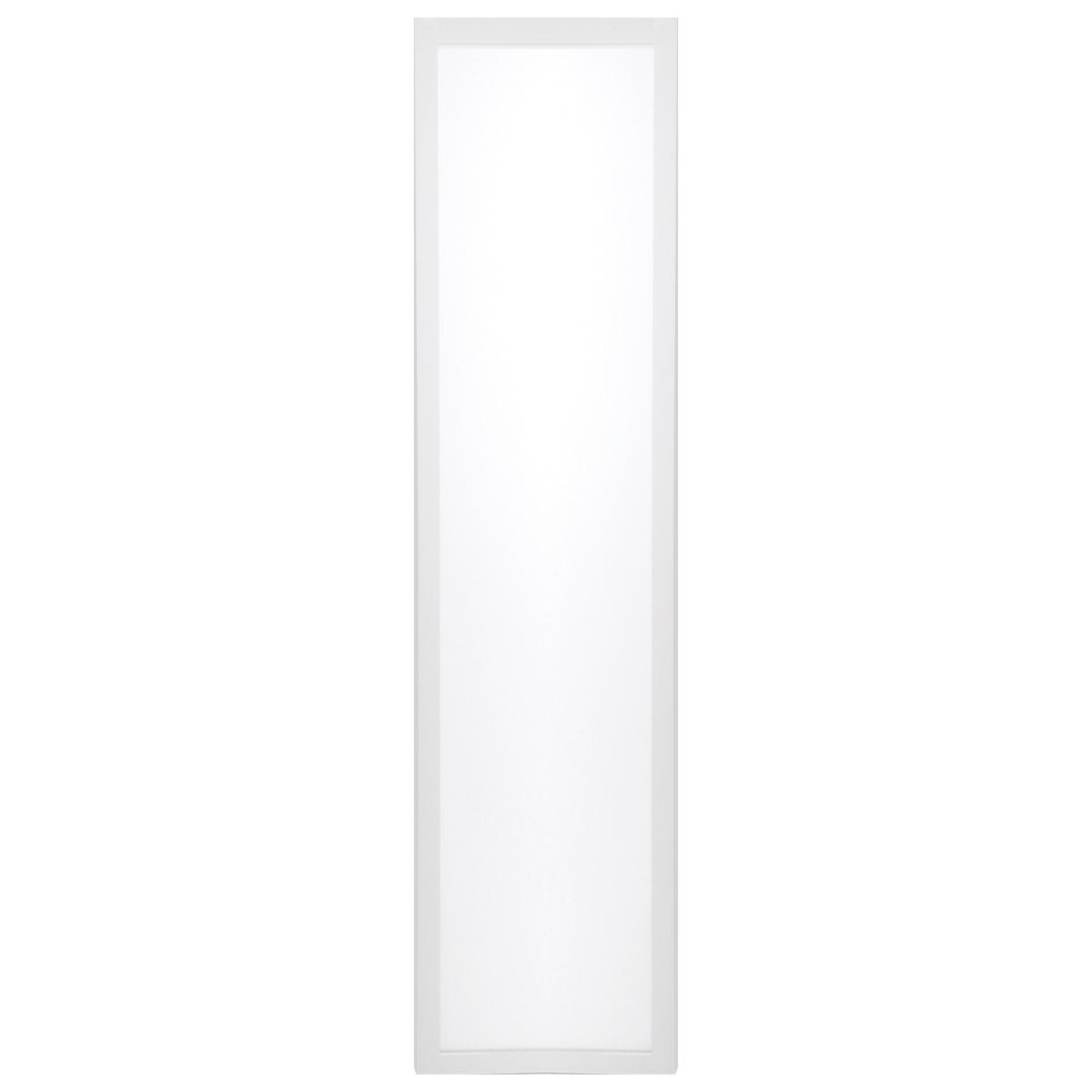

65-577R1 1X4 LED EM BACKLIT FLAT PANEL

65-577R1

1X4 LED EM BACKLIT FLAT PANEL

LED Emergency Backlit Flat Panel; 1 ft. x 4 ft.; Wattage and CCT Selectable; 100-277 Volt; ColorQuick Technology; PowerQuick Technology


SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making these fixtures extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Our integrated emergency battery backup models, with a 90-minute run time, will make you feel safe and sound just when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.
  • 3500K/4000K/5000K CCT Selectable
  • 20W/30W/40W Wattage Selectable
  • Integrated emergency battery backup with 90-minute run time
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed
Lights

65-577R1

1X4 LED EM BACKLIT FLAT PANEL

LED Emergency Backlit Flat Panel; 1 ft. x 4 ft.; Wattage and CCT Selectable; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making these fixtures extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Our integrated emergency battery backup models, with a 90-minute run time, will make you feel safe and sound just when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.
  • 3500K/4000K/5000K CCT Selectable
  • 20W/30W/40W Wattage Selectable
  • Integrated emergency battery backup with 90-minute run time
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed

Specifications

General
StatusActive
Fixture TypeBacklit Flat Panel
FinishWhite
Wattage20W/30W/40W
Lumen Output2200L-4600L
CCT (Kelvin)3500K/4000K/5000K
IP RatingIP20
Indoor or Outdoor FixtureIndoor
Panel Size1x4
Smart Product Info
IOT EnabledNo
Specifications
TechnologyLED
Wattage20W/30W/40W
Lumen Output2200L-4600L
CCT (Kelvin)3500K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80+
Voltage100V-277V
Beam Angle120
Rated Hours50000
Operating Temperature-17C (+1.4F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Photocell or SensorNo Photocell
Lens MaterialPoly methyl methacrylate (PMMA)
Surge ProtectionBuilt-in surge protection - 2KV
Weight (lb.)4.98
IP RatingIP20
MaterialAluminum / Steel
Dimensions
Height (in.)3.09
Width (in.)11.84
Length (in.)47.72
Compliance
Safety ListingcETLus - Listed
Location RatingDamp
UL ApplicationLED Panel Luminaire
Energy StarNo
DLC ApprovedYes
DLC IDS-HLPDJ6
NSF ApprovedYes
Air Tight RatedNo
IC RatedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Flicker FreeYes
SDS SheetLED Fixture
Additional Information
Additional InformationDriver Specs - VDC38-48V; 430/620/810mA
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923657191
Each Quantity1
Each Length (in.)49.02
Each Width (in.)2.56
Each Height (in.)13.39
Each Weight (lb.)6.70
Each Cube (CuFt.)0.9724
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923657198
Case Quantity1
Case Length (in.)49.02
Case Width (in.)2.56
Case Height (in.)13.39
Case Weight (lb.)6.70
Case Cube (CuFt.)0.9724
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Eaton DF10P Visit
Dimmer Eaton SF10P Visit
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01 Visit
×
×
×

Precautions

No precautions available at this time.

×
