» 65-762

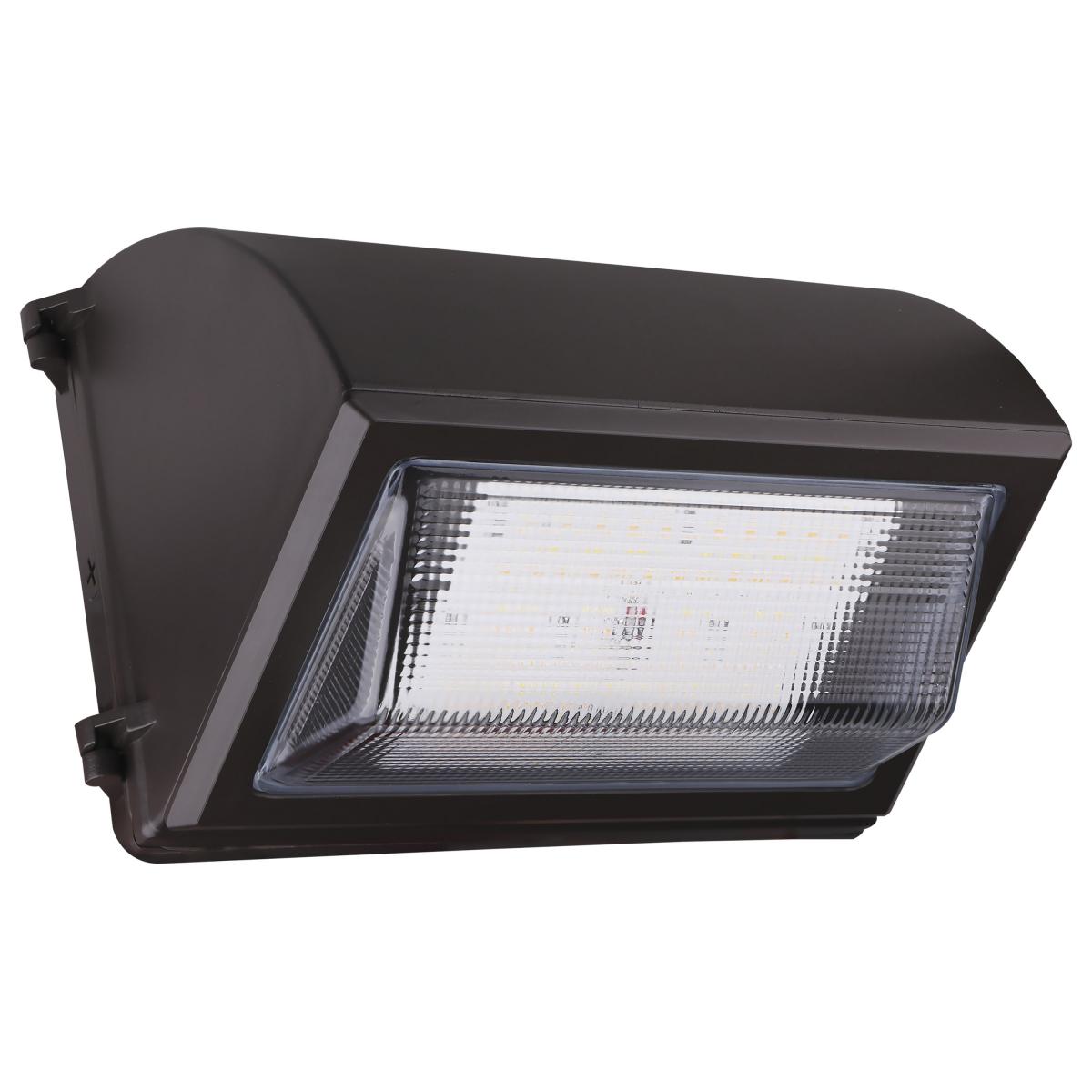

65-762 EM CUTOFF WALL PACK CCT&WATT

65-762

EM CUTOFF WALL PACK CCT&WATT

Emergency LED Cutoff Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; 120-277 Volt


Introducing SATCO|NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells and emergency battery backup modes. These cULus certified wall packs are offered in both a traditional and semi-cutoff style in 29W/40W/60W selectable wattage configurations. They are CCT selectable 3000K, 4000K and 5000K and both feature battery back up modes consisting of 16 watts of power at 1120 lumens with a 90 minute run time. The traditional style is offered in both 120V-277V and 120V-347V and the semi-cutoff version is 120V-277V. Both styles are KV rated, rated for 50,000 hours, are DLC premium, and carry a 5 year warranty.
  • Maintenance free - no bulb to change
  • Integrated by-passable photocell
  • Built-in surge protection - 10KV
  • Wattage Selectable 29W/40W/60W
  • 50,000 Hours Long Life
  • DLC Premium
  • IP65 Rugged, All Weather Durability
  • CCT Selectable 3000K/4000K/5000K
  • Battery Mode 16W/1120 Lumens/90 min. Run Time
Lights

65-762

EM CUTOFF WALL PACK CCT&WATT

Emergency LED Cutoff Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; 120-277 Volt

Introducing SATCO|NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells and emergency battery backup modes. These cULus certified wall packs are offered in both a traditional and semi-cutoff style in 29W/40W/60W selectable wattage configurations. They are CCT selectable 3000K, 4000K and 5000K and both feature battery back up modes consisting of 16 watts of power at 1120 lumens with a 90 minute run time. The traditional style is offered in both 120V-277V and 120V-347V and the semi-cutoff version is 120V-277V. Both styles are KV rated, rated for 50,000 hours, are DLC premium, and carry a 5 year warranty.
  • Maintenance free - no bulb to change
  • Integrated by-passable photocell
  • Built-in surge protection - 10KV
  • Wattage Selectable 29W/40W/60W
  • 50,000 Hours Long Life
  • DLC Premium
  • IP65 Rugged, All Weather Durability
  • CCT Selectable 3000K/4000K/5000K
  • Battery Mode 16W/1120 Lumens/90 min. Run Time

Specifications

General
StatusActive
Fixture TypeWall Pack
FinishBronze
Wattage29W/40W/60W
Lumen Output3915L-8400L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor; Outdoor
Specifications
TechnologyLED
Wattage29W/40W/60W
Lumen Output3915L-8400L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80
Voltage120V-277V
Beam Angle110
Rated Hours50000
Operating Temperature-40C (-40F) to +50C (+122F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Photocell or SensorYes - Bypassable
Lens MaterialGlass
Surge ProtectionBuilt-in surge protection - 10KV
Weight (lb.)10.5
IP RatingIP65
MaterialDie-cast Aluminum
Dimensions
Height (in.)9.83
Width (in.)14.26
Extension (in.)9.33
Compliance
Safety ListingcULus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-LABY1P
B.U.G. RatingB2-U3-G3
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923658808
Each Quantity1
Each Length (in.)15.75
Each Width (in.)11.81
Each Height (in.)12.60
Each Weight (lb.)11.24
Each Cube (CuFt.)1.3563
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923658805
Case Quantity1
Case Length (in.)15.75
Case Width (in.)11.81
Case Height (in.)12.60
Case Weight (lb.)11.24
Case Cube (CuFt.)1.3563
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
